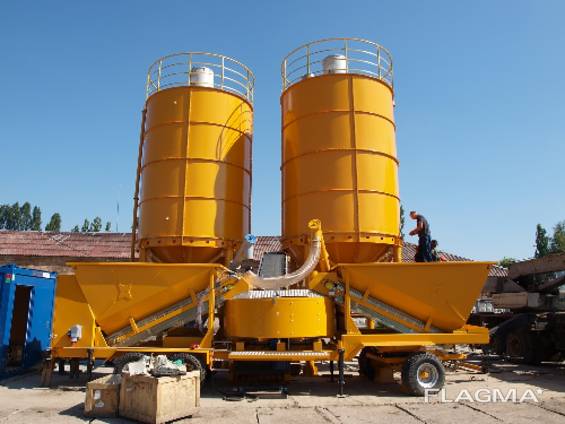

Mobile concrete plant SUMAB M-2200 (50-80 m3/hour) Sweden

Sumab M-2200 mobile concrete plant.

SUMAB mobile concrete plants have proven themselves to be reliable and high-quality equipment for producing all types of concrete and concrete mixes, ensuring high-quality concrete.
Concrete production is possible within 3 hours of the plant's arrival at the worksite!
The mobile concrete plant can be easily moved from one site to another.
No foundation or approvals are required for plant installation!
The concrete plant can be installed on any site with a minimum size of 15 x 20 m.

The mobile concrete plant is capable of producing over 50 grades of concrete, with recipes that can be changed for each subsequent batch.
Automatic plant control, Icon computer.

Concrete plant specifications and accessories:
The Sumab M-2200 mobile concrete plant is designed for the production of high-quality concrete and concrete mixes, with a capacity of 50-80 m³ per hour.

The exact performance of the plant depends on the type and grade of concrete produced, as well as the aggregates, cement, and amount of chemical additives used.

The mobile concrete plant is equipped with a user-friendly control cabin and an automatic plant control system.
The modern Icon computer system allows for the production of 50 concrete formulas and grades. It is possible to print out each finished batch in kilograms and the percentage of aggregates or cement during concrete mixing.

The basic plant configuration includes the following components:
1. A fully automated mobile concrete plant with a capacity of 50-80 m³ per hour.

Mounted on a chassis with wheels.
2. Aggregate bins (4 x 3.8 m³).
3. Aggregate weighing sensors (located under the planetary mixer). Dosing accuracy +/- 100 g. Siemens, Germany.
4. Conveyor for feeding inert materials from bins to the mixer, including a 4.5 kW electric motor. Located under the bins.
5. Pan mixer, 2200/1450 liters, coated with a 12 mm layer of special steel.
5 quick-release paddles with fiberglass tips. Automatically opening ready-mix concrete feed flap.
6. Galvanized water tank, 500 liters, with a built-in Danfoss pump and water feeder.
7. Air compressor, 10 BAR.
8. Mobile concrete plant control panel. Manual control keyboard. Soft-touch screen. Siemens PC for automatic plant control. 50 concrete grades with the ability to change the concrete grade before each batch. Printer with ready-mix mixture in kg and %. Performance indicators per batch, hour, shift, and month

Additional options:
High-pressure compressor 160 BAR for cleaning the concrete plant
Cement feed auger – 220 mm diameter, 4.5 meters long. 5.5 kW electric motor. Built-in cement dosing sensors
Cement silo 60-100 tons including filter, ladder, max-min levels, safety grate, and cement feed pipe
Conveyor for ready-mixed concrete from the mixer. Length 12 m, width 1000 mm.
Chemical additive pump with hose, automatically controlled by a PC.
